Name: LTE180 - 18 Ton Crawler Excavator
Brand: LTMG
SKU: SKU-2443-5IAAE
Availability: InStock

Email to a Friend

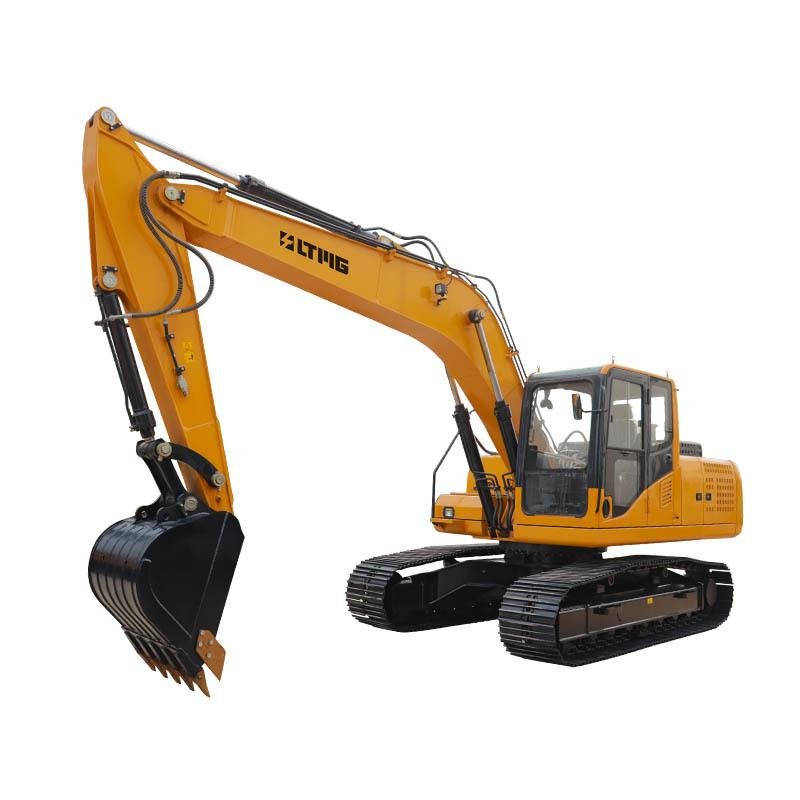

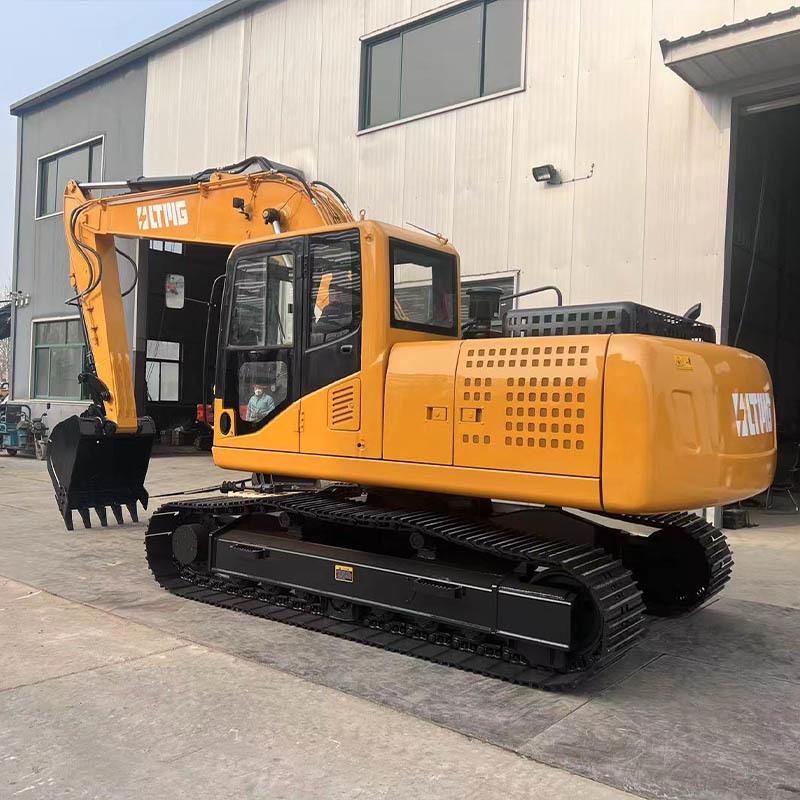

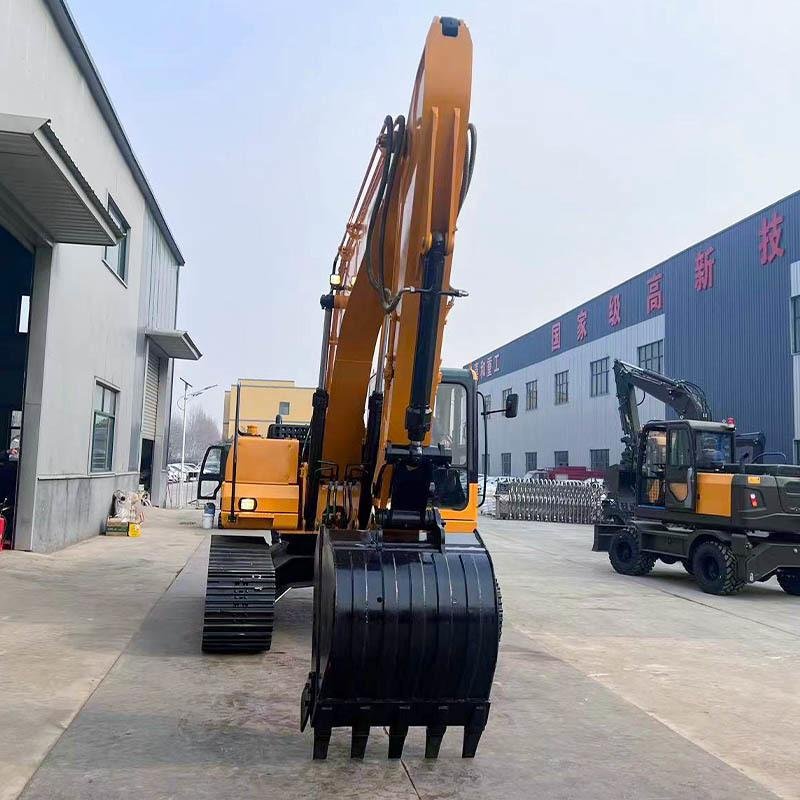

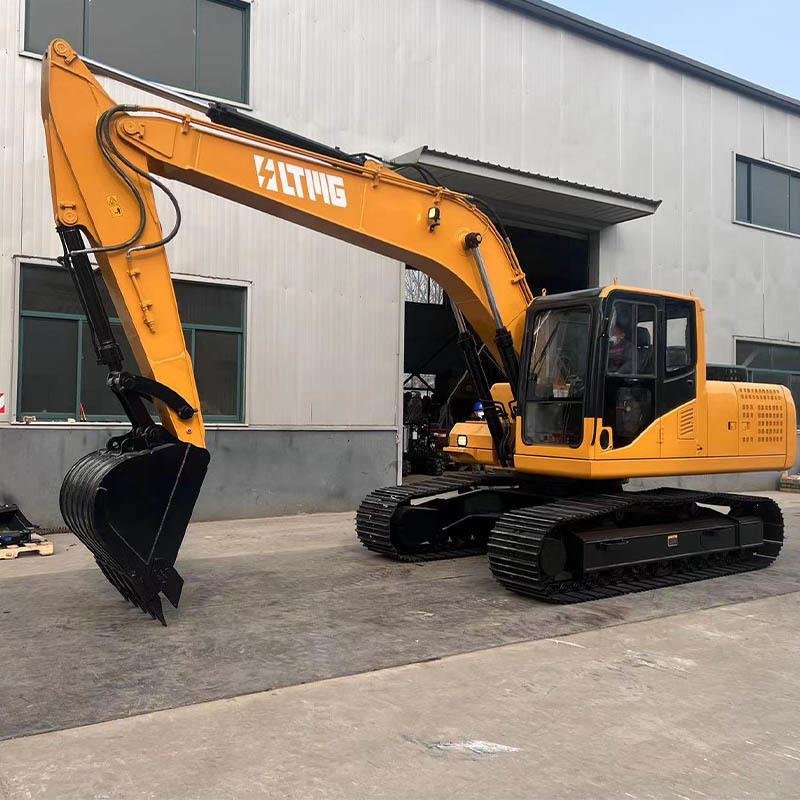

LTE180 - 18 Ton Crawler Excavator

(0 reviews)

$0.00

Sold By:LTMG

Human-centered design,spacious and well-lit for comfortable operation and improved productivity &safety.

Track-based undercarriage designed for optimal ground contact andstability across varied conditions.

The responsive hydraulic system ensures smooth operations,enabling versatile adjustment of digging depth,height,and dumping reach to accommodate various excavation demands

Ideal for large-scale earthmoving and loading tasks,significantly boosting work efficiency.

Wide,heavy-duty tracks offering excellent stability.

Equipped with efficient cooling system,easy to open for convenient dailyinspection and maintenance.

SKU:SKU-2443-5IAAE
Kategorien:TBD
Marken:LTMG

Specification

Performance Parameters	Unit	LTE180
Operating Weight	Kg	18000
Engine Model		Cummins QSF3.8
Rated Power	Kw	93KW/2200rpm
Bucket Capacity	m³	0.8
Max Digging Force	Kn	98
Swing Speed	rpm	0-12
Traveling Speed	km/h	2.8-4.2
Gradeability	°	30°
Operating Range
Max. Digging Radius	mm	8985
Max. Digging Depth	mm	5975
Max. Digging Height	mm	9430
Max. Dumping Height	mm	6960
Min. Swing Radius	mm	2725
Overall Dimensions
Overall Length	mm	8540
Overall Width	mm	2720
Overall Height	mm	2920
Axle Base	mm	3200
Wheel(track) Distance	mm	2120
Mini.Ground Clearance	mm	480
Track Width	mm	600
Undercarriage width	mm	2720

With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
