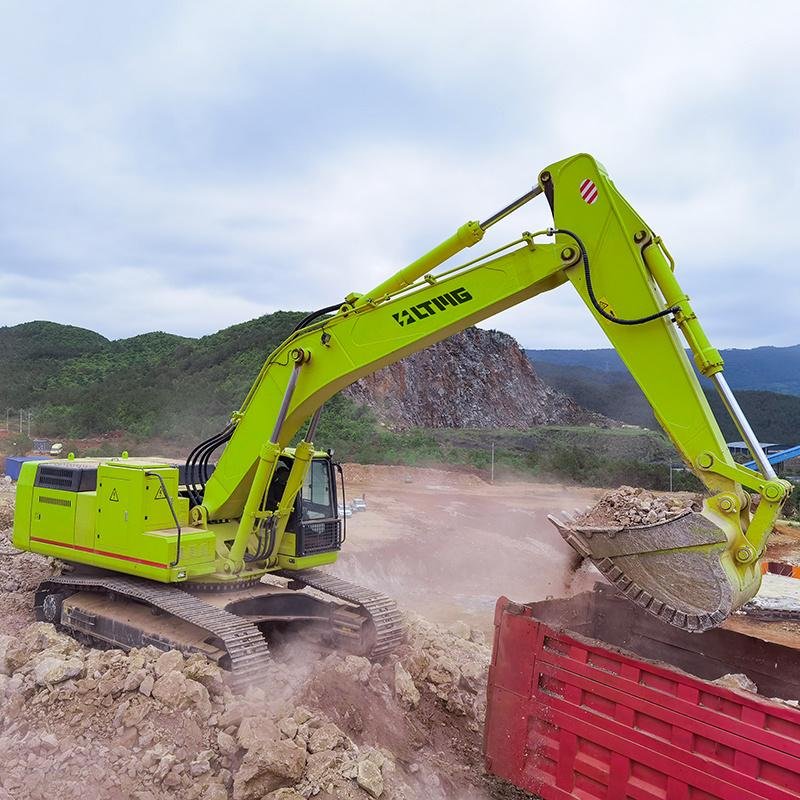

Name: LTE480EV - 48 Ton Electric Excavator (Wired)
Brand: LTMG
SKU: SKU-2443-8BHQA
Availability: InStock

LTE480EV - 48 Ton Electric Excavator (Wired)

Email to a Friend

LTE480EV - 48 Ton Electric Excavator (Wired)

(0 reviews)

$0.00100% Off$0.00

Sold By:LTMG

The main motor uses a frequency converter and is equipped with imported SKF bearings with a protection level of IP55; it features a cage structure that ensures reliable operation and easy maintenance. The motor's working speed can be adjusted through frequency control; it is equipped with an independent axial fan to ensure good cooling effects at various speeds.

A high-performance vector inverter is used for control, which avoids the impact of starting surge currents. It is designed with a wide voltage range that meets international standards, has independent airway cooling, provides high torque at low speeds, supports various encoders, and can achieve high-precision closed-loop control.

The electrical control cabinet is equipped with functions such as leakage protection, over-voltage and under-voltage protection, phase sequence protection, and motor overload protection. The overall protection level reaches IP54, and it uses world-class electrical components suitable for various harsh working environments.

Compared to diesel engine power systems, the energy consumption cost under the same working conditions is about half that of a diesel engine.

SKU:SKU-2443-8BHQA
Categories:More
Brands:LTMG

Specification

Specification		LTE480EV
Total weight	T	45.8
Bucket capacity	M³	2.8-3
Motor model		YVF315L2-4
Rated power	Kw/r/min	200/1800
Rated voltage	V	380
Rated stored energy	KWh	/
Max displacement	L/min	/
Working pressure	Mpa	34.3
Hydraulic pump mode		K5V200TH
Hydraulic tank volume	L	360
Walking speed (high/low)	km/h	4/2.3
Swing speed	r/min	7.5
Climbing ability	°	35
Bucket excavation force	KN	256
Arm digging force	KN	212
Ground specific voltage	KPa	88.5
Traction force	KN	404
Max. excavation height	mm	10880
Max. unloading heigh	mm	7605
Max.excavation depth	mm	7758
Max. verticalarm mining depth	mm	/
The distance when digging 2.5 horizontal plane	mm	/
Max. excavation distance	mm	11970
Max. excavation distance on the ground	mm	11815
Min. turning radius	mm	4825
Max. height at minimum turning radius	mm	9250
Distance from the center of rotation to the rear end	mm	3845
Counterweight height	mm	2835
Grounding length during transportation	mm	6650
Overalllength	mm	12180
Overall width	mm	3340
Total heigh(boom top)	mm	3640
verall height(top ofcab)	mm	3280
Counterweight ground clearance	mm	1300
Min. ground clearance	mm	722
Tail turning radius	mm	3845
Track grounding length	mm	4378
Track length	mm	5390
Rail guage	mm	2740
Track width	mm	3340
Track shoe width	mm	600
Turntable width	mm	3045
rack tooth thickness	mm	/
Arm length	mm	3380
Boom length	mm	7060

With technological innovation our product configuration and parameters will continue to change without notice;

if there is any doubt the specific confirmation of our international trade sales shall prevail;
